Specifications
Antenna-
- LoRa : N-type female antenna, omnidirectional fiberglass antenna, 2dBi
- 4G Cellular : N-type female antenna, omnidirectional fiberglass antenna, 3dBi
- WIFI : N-type female antenna, 2.4G omnidirectional fiberglass antenna, 3dBi
- GPS : N-type female antenna, omnidirectional fiberglass antenna, 4dBi
Power Supply-
- Standard : AC 220V, DC 12-48V (optional).
- POE (optional) : 10/100 Base-T, IEEE802.3af/IEEE802.3at standard
Power Consumption –
- Installation : Wall mounting or pole mounting.
- Dimensions : 289.4×217.5×115.0mm.
- Weight : 2700g
- Shell : IP67
- Certifications : CE & FCC.
Characteristic -
- Band : IN865-868
- Sensitivity : -142dbm@LoRa
- Upstream Channel : 8
- Downstream : 1
- Data Rate : ADR

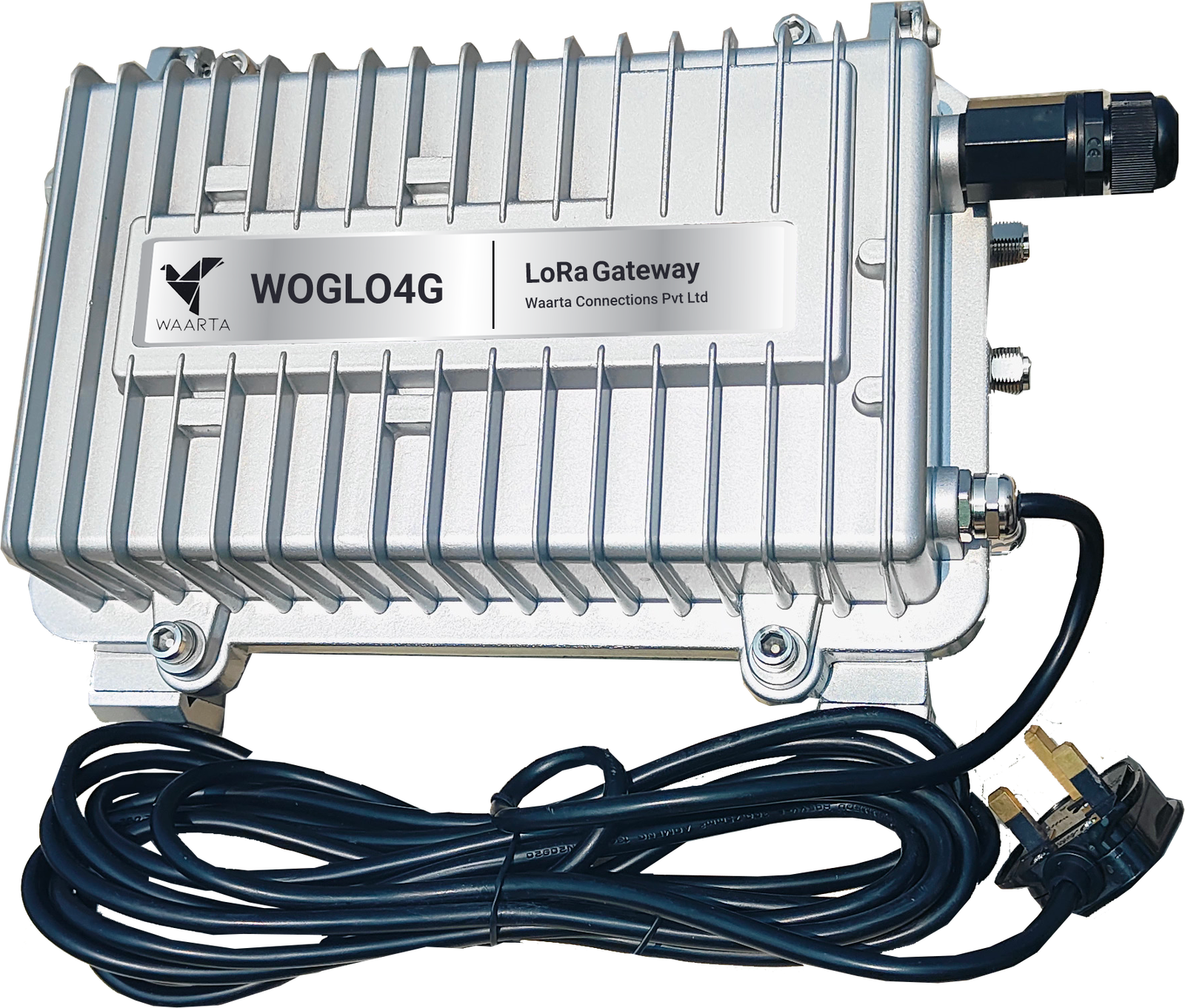

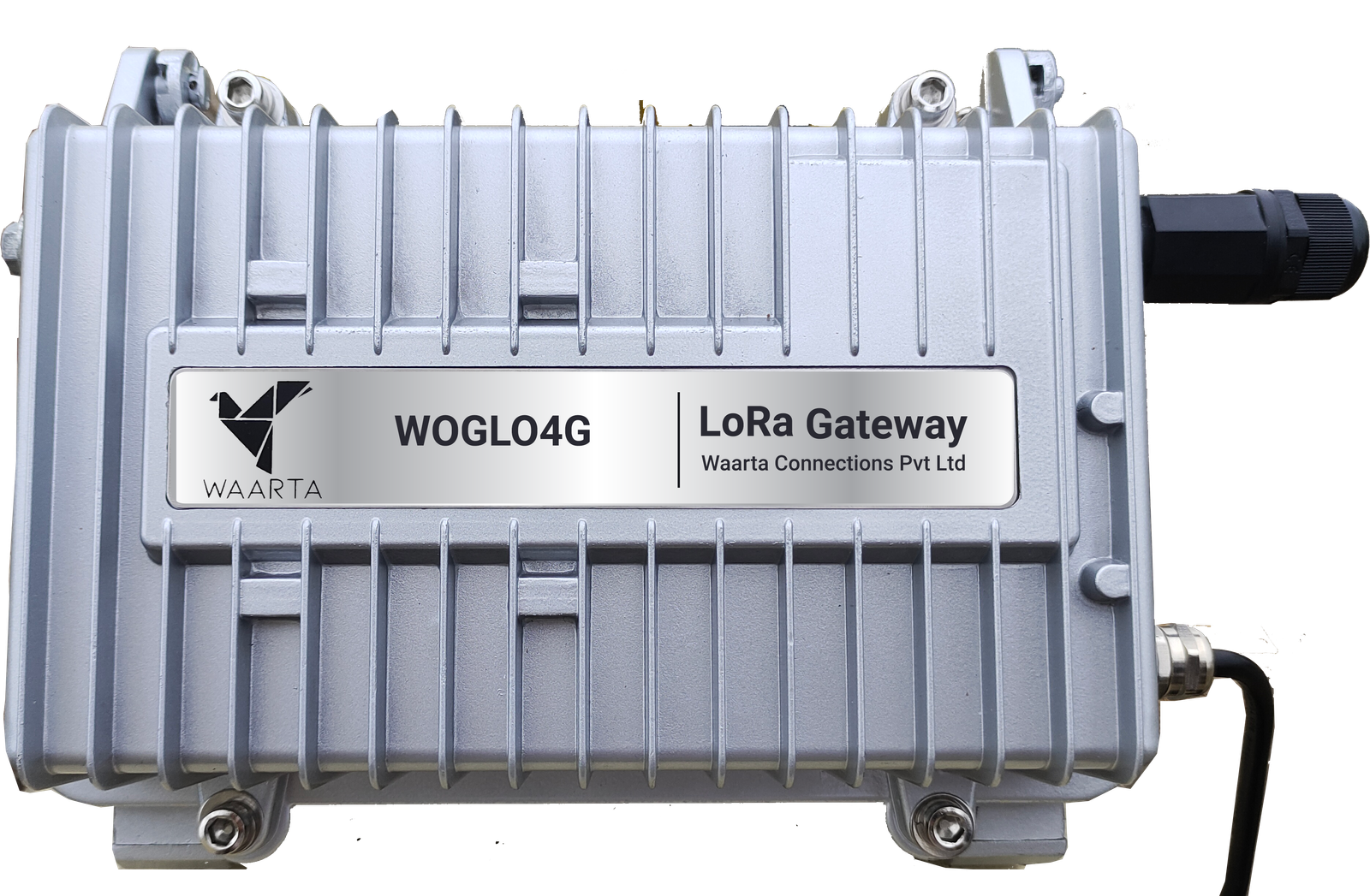

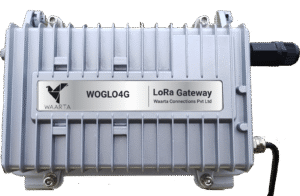

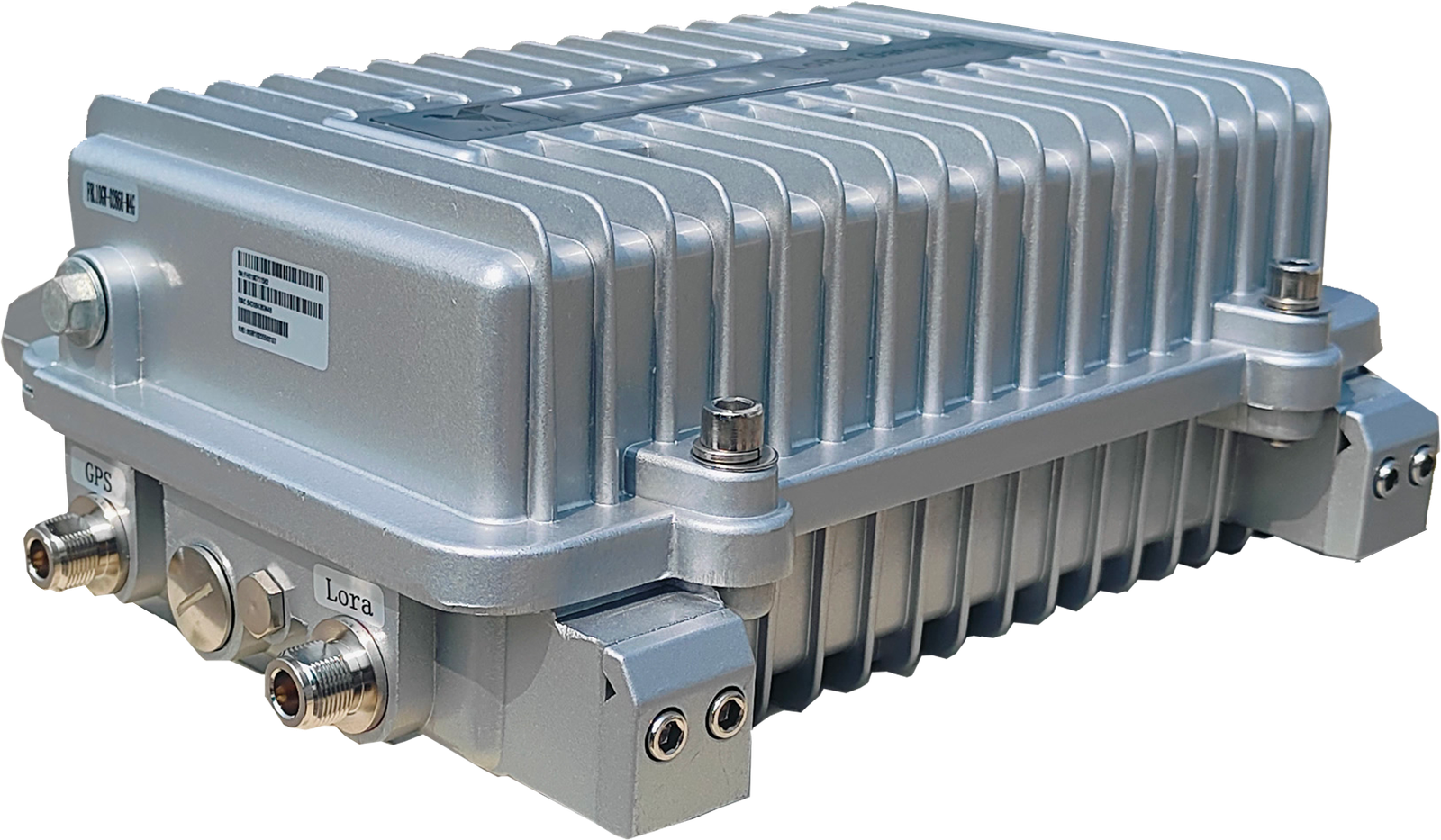

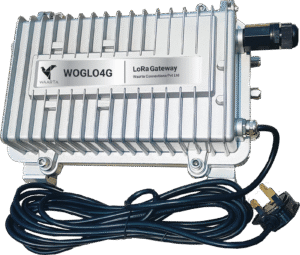

Outdoor LoRaWAN Gateway Model WOGLO4G
Industrial-grade Design
- High-performance industrial-grade CPU and Wireless Module .
- High-powered industrial MCU.
- Support low power consumption mode.
- Power range: DC 5~36V.
Standard and Convenience
- WDT watchdog timer to ensure system stability.
- Anti-drop mechanism to ensure device always online.
- SIM/UIM card interface with built-in 15KV ESD.
- Power interface with built-in phase-reversal, overvoltage and lightning protection.
- Antenna interface with lightning protection.
High-performance
- Provide wired Ethernet and DHCP-4G (default) connection modes.
- Support LoRaWAN® protocol: Class A, Class C.
- Support 802.11 b/g/n WIFI network.
- WIFI support variety types of encryption such as WEP, WPA and WPA2.
- Support MAC address filtering.
- Support LoRaWAN® wireless data transmission protocol.
DISCOVER OUR WORK
Specifications
Hardware System –
Linux Part
- 400Mhz ar9331 processor
- 64MB RAM
- 16MB Flash
Interface
- 10M/100M RJ45 Ports x 2
- WiFi : 802.11 b/g/n
- LoRaWAN Wireless
- Power Input: 12 ~ 24 V DC, 1 A
- IEEE 802.3 af compliant PoE port (DC 37 ~ 57 v)
- USB 2.0 host connector x1
- Mini-PCI E connector x 1
- SX1301 + 2 x SX1257
LoRa Spec
- Up to -140 dBm sensitivity with SX1257 Tx/Rx front-end
- 70 dB CW interferer rejection at 1 MHz offset
- Able to operate with negative SNR, CCR up to 9dB
- Emulates 49 x LoRa demodulators and 1 x (G)FSK demodulator
- Dual digital TX & RX radio front-end interfaces
- 10 programmable parallel demodulation paths
- Dynamic data-rate (DDR) adaptation
Cellular 3G/4G
- True antenna diversity or simultaneous dual-band operation
- Standard Size SIM Slot
- Worldwide LTE,UMTS/HSPA+ and GSM/GPRS/EDGE coverage
Outdoor LoRaWAN Gateway Model WOGLGD-100
- Open Source Embedded Linux system.
- Managed by Web GUI, SSH via LAN or WiFi.
- Support Semtech UDP packet forwarder.
- Support LoRaWAN Station Connection.
- Cellular Failover connection (optional).
- Direct Communication to LoRaWAN ABP Node
LoRaWAN packet filtering. - Far seeing LED indicator.
- Built-in GPS module for location & timing.
- External fiber glass antenna.
- Remote Monitoring.
- 802.3af PoE.
- IP65.
- Lighting Protection.
- Power Consumption:12v 300 ~500mA.
- 10 programmable parallel demodulation paths.
