Smart automation for your irrigation infrastructure.
Connects with field devices to control motors, valves,
and sensors remotely in real time.
DISCOVER OUR WORK
- Standard Power : 12V DC/0.5A
- Power Range : 5V -36V DC
- Power Consumption : 1.5W
- Processor : 32 BIT ARM CORTEX M4 40 MHZ
- OS : TI-RTOS/SYS_BIOS
- Memory : 1024 KB FLASH, 16 KB SRAM
- Analog Input : 2 channels; 4-20 mA
- Digital Output : 8 channels
- Communication Protocol : GPRS ( 2G/ 3G/4G)
SPECIFICATIONS
SPECIFICATIONS
- Standard Power : 12V DC/0.5A
- Power Range : 5V -36V DC
- Power Consumption : 1.5W
- Processor : 32 BIT ARM CORTEX M4 40 MHZ.
- OS : TI-RTOS/SYS_BIOS
- Memory : 1024 KB FLASH, 16 KB SRAM
- Analog Input : 2 channels; 4-20 mA
- Digital Output : 8 channels
- Communication Protocol : LoRa
- Frequency : 865-867 MHz
- RX Sensitivity : -140dBm
SPECIFICATIONS
- Standard Power : 12V DC/0.5A
- Power Range : 5V -36V DC
- Power Consumption : 1.5W
- Processor : 32 BIT ARM CORTEX M4 40 MHZ
- OS : TI-RTOS/SYS_BIOS
- Memory : 1024 KB FLASH, 16 KB SRAM
- Analog Input : 2 channels; 4-20 mA
- Digital Output : 16 channels
- Communication Protocol : GPRS ( 2G/ 3G/4G)
SPECIFICATIONS
- Standard Power : 12V DC/0.5A
- Power Range : 5V -36V DC
- Power Consumption : 1.5W
- Processor : 32 BIT ARM CORTEX M4 40 MHZ
- OS : TI-RTOS/SYS_BIOS
- Memory : 1024 KB FLASH, 16 KB SRAM
- Analog Input : 2 channels; 4-20 mA
- Digital Output : 16 channels
- Communication Protocol : LoRa
- Frequency : 865-867 MHz
- RX Sensitivity : -140dBm

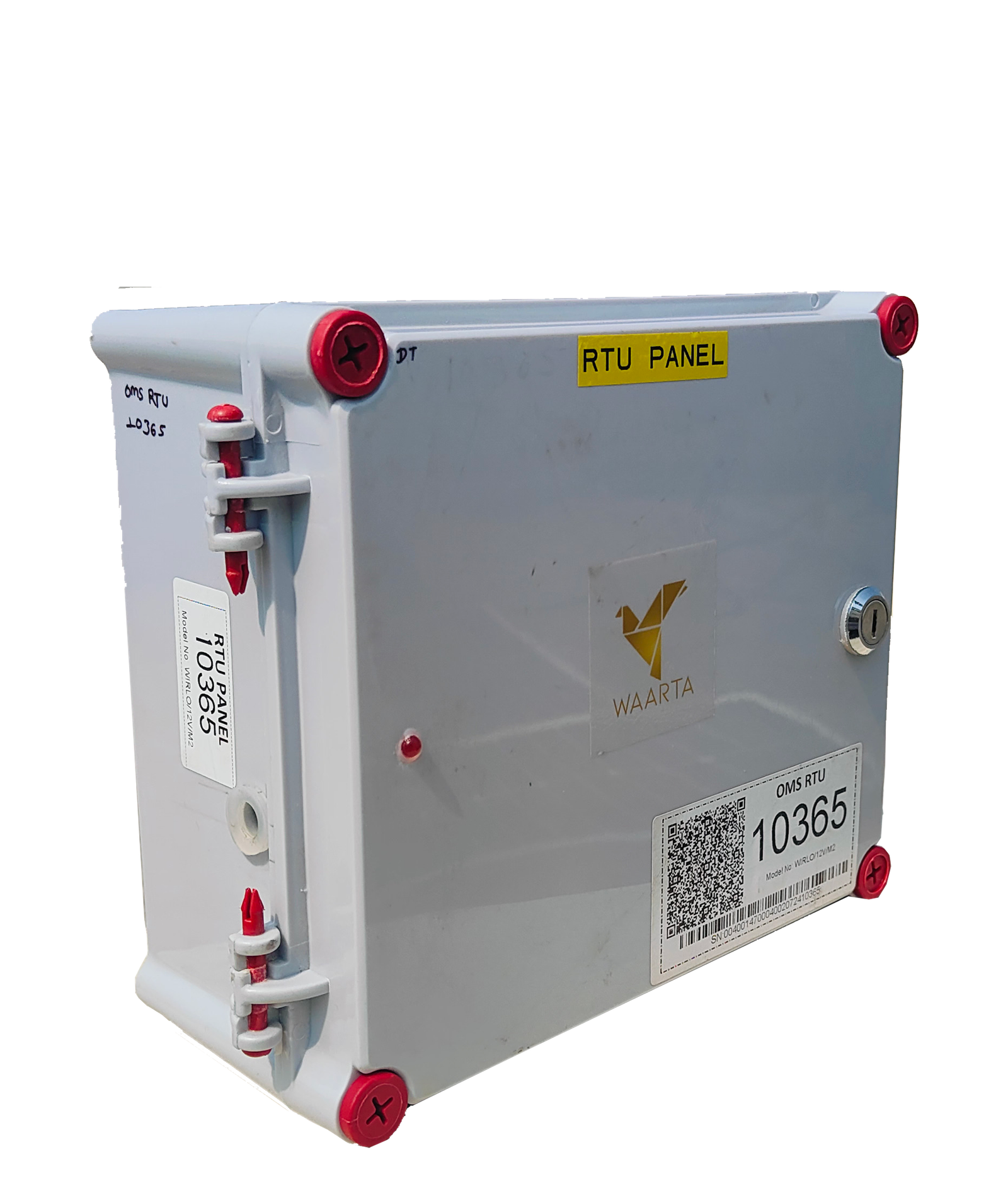

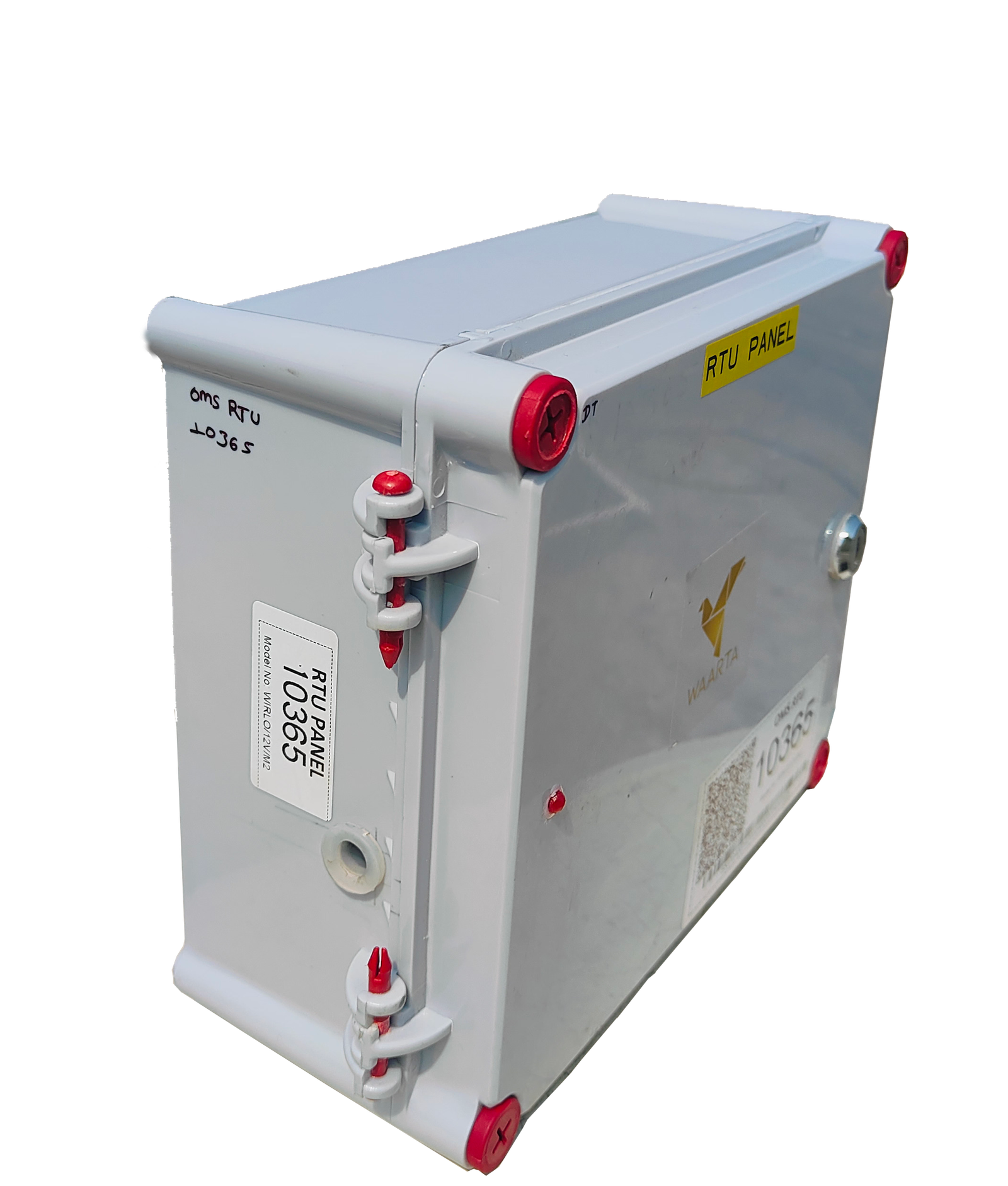

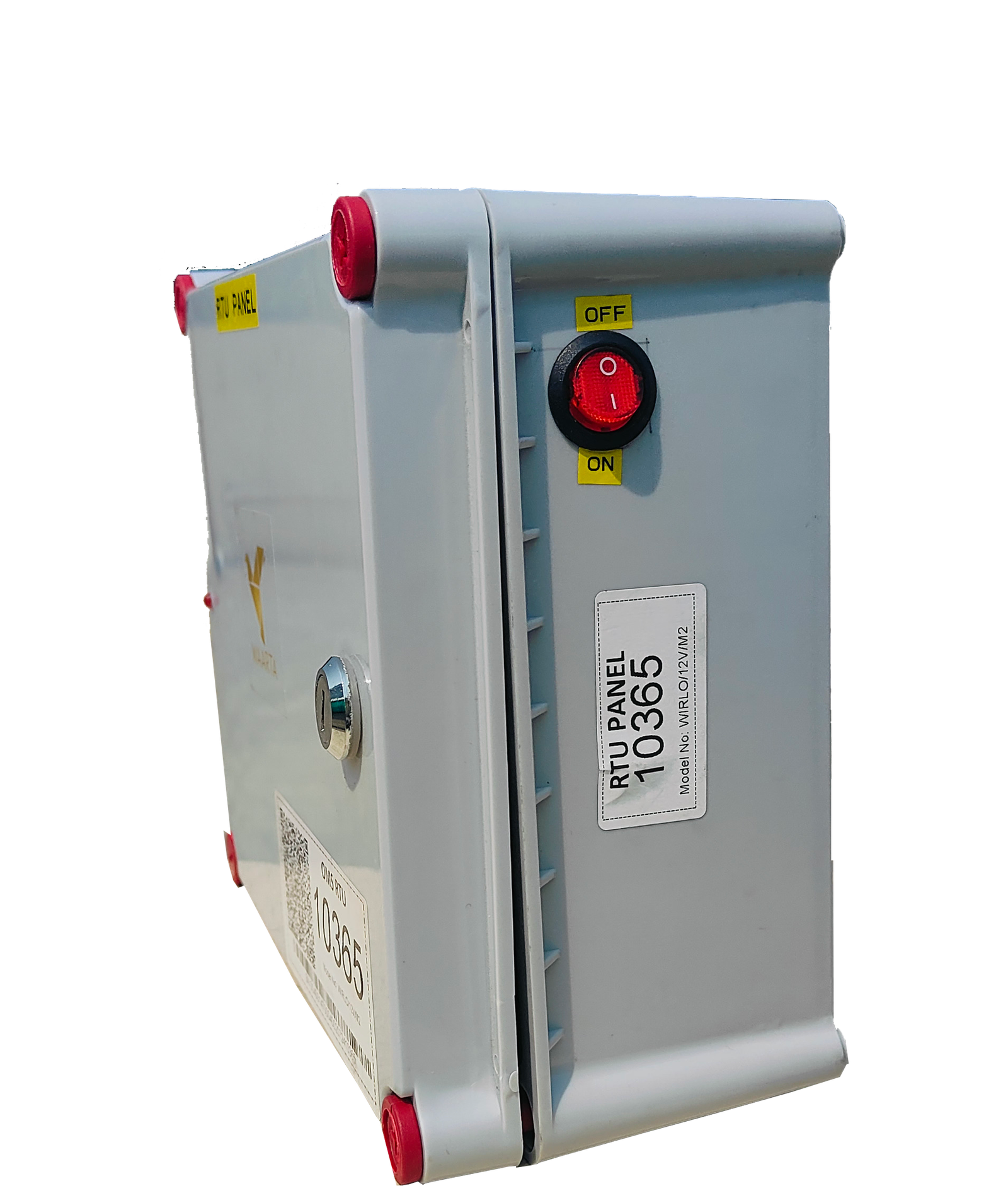

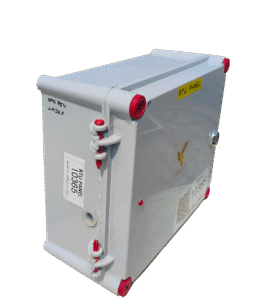

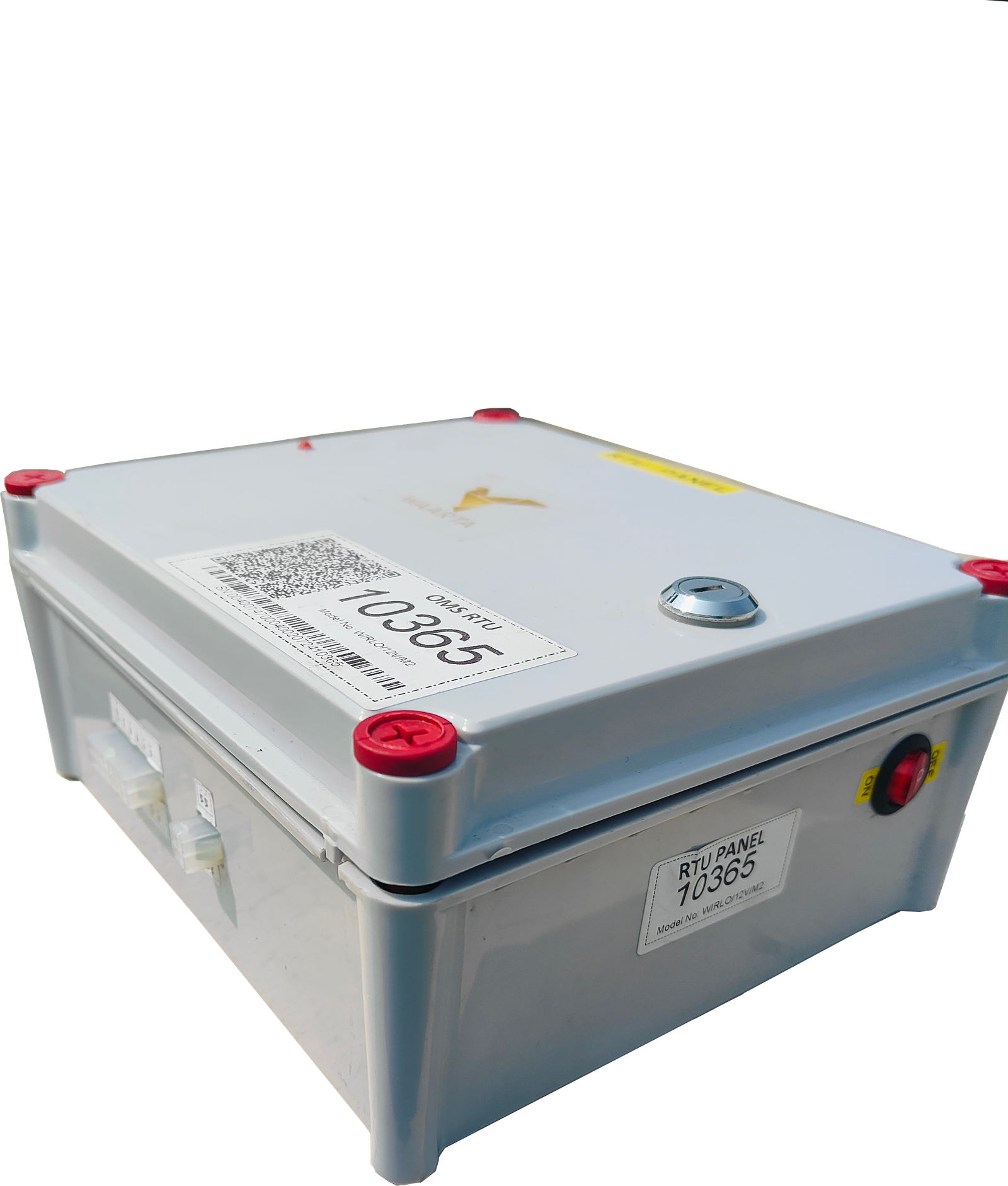

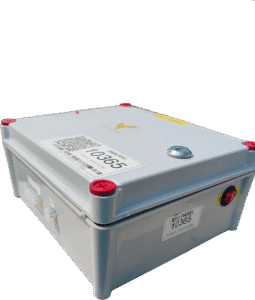

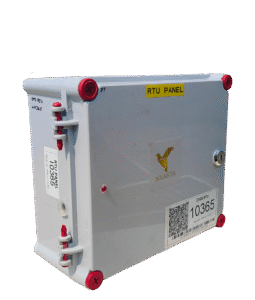

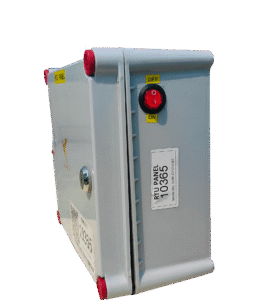

IOT Based RTU using LoRa/GPRS for Communication
Design for Industrial Application
- High-performance industrial-grade CPU and Wireless Module
- High-powered industrial MCU.
- Support low power consumption mode.
- Power range: DC 5~36V
Stability and Reliability
- Support hardware and software WDT.
- Power port: reverse-voltage and overvoltage protection
Standard and Convenience
- Adopt terminal block interface, convenient for industrial application.
- Support Communication on industrial protocols.
- Customizable uplink timing.
- Support intellectual mode, enter into communication state automatically when powered.
High-performance
- Support Adaptive Data Rate Transmission.
- Works on Acknowledgement Module.
DISCOVER OUR WORK
IOT Based RTU using LoRa/GPRS for Communication
Design for Industrial Application
- High-performance industrial-grade CPU and Wireless Module
- High-powered industrial MCU.
- Support low power consumption mode.
- Power range: DC 5~36V
Stability and Reliability
- Support hardware and software WDT.
- Power port: reverse-voltage and overvoltage protection
Standard and Convenience
- Adopt terminal block interface, convenient for industrial application.
- Support Communication on industrial protocols.
- Customizable uplink timing.
- Support intellectual mode, enter into communication state automatically when powered.
High-performance
- Support Adaptive Data Rate Transmission.
- Works on Acknowledgement Module.
- Standard Power : 12V DC/0.5A
- Power Range : 5V -36V DC
- Power Consumption : 1.5W
- Processor : 32 BIT ARM CORTEX M4 40 MHZ
- OS : TI-RTOS/SYS_BIOS
- Memory : 1024 KB FLASH, 16 KB SRAM
- Analog Input : 2 channels; 4-20 mA
- Digital Output : 8 channels
- Communication Protocol : GPRS ( 2G/ 3G/4G)
SPECIFICATIONS
SPECIFICATIONS
- Standard Power : 12V DC/0.5A
- Power Range : 5V -36V DC
- Power Consumption : 1.5W
- Processor : 32 BIT ARM CORTEX M4 40 MHZ.
- OS : TI-RTOS/SYS_BIOS
- Memory : 1024 KB FLASH, 16 KB SRAM
- Analog Input : 2 channels; 4-20 mA
- Digital Output : 8 channels
- Communication Protocol : LoRa
- Frequency : 865-867 MHz
- RX Sensitivity : -140dBm
SPECIFICATIONS
- Standard Power : 12V DC/0.5A
- Power Range : 5V -36V DC
- Power Consumption : 1.5W
- Processor : 32 BIT ARM CORTEX M4 40 MHZ
- OS : TI-RTOS/SYS_BIOS
- Memory : 1024 KB FLASH, 16 KB SRAM
- Analog Input : 2 channels; 4-20 mA
- Digital Output : 16 channels
- Communication Protocol : GPRS ( 2G/ 3G/4G)
SPECIFICATIONS
- Standard Power : 12V DC/0.5A
- Power Range : 5V -36V DC
- Power Consumption : 1.5W
- Processor : 32 BIT ARM CORTEX M4 40 MHZ
- OS : TI-RTOS/SYS_BIOS
- Memory : 1024 KB FLASH, 16 KB SRAM
- Analog Input : 2 channels; 4-20 mA
- Digital Output : 16 channels
- Communication Protocol : LoRa
- Frequency : 865-867 MHz
- RX Sensitivity : -140dBm
